How Radiator Reflective Panels Work

The principle is straightforward. A standard radiator emits heat in all directions - including backwards, directly into the wall it's mounted on. In older properties with solid walls, uninsulated cavity walls, or poorly insulated external walls, a meaningful percentage of that heat output is absorbed by the wall and conducted outside. The room receives less heat than the radiator is generating, and the boiler has to work harder and longer to compensate.

A radiator reflective panel installed behind the radiator changes that dynamic. The aluminium foil facing acts as a thermal mirror, reflecting radiant heat back into the room instead of allowing it to be absorbed by the wall surface. The high-density XPS core adds a layer of insulating resistance between the warm radiator and the cold wall behind it, further reducing the rate of heat transfer into the building fabric. The combined effect is a radiator that delivers more of its heat output into the living space - and a boiler that doesn't need to run as long to achieve the same room temperature.

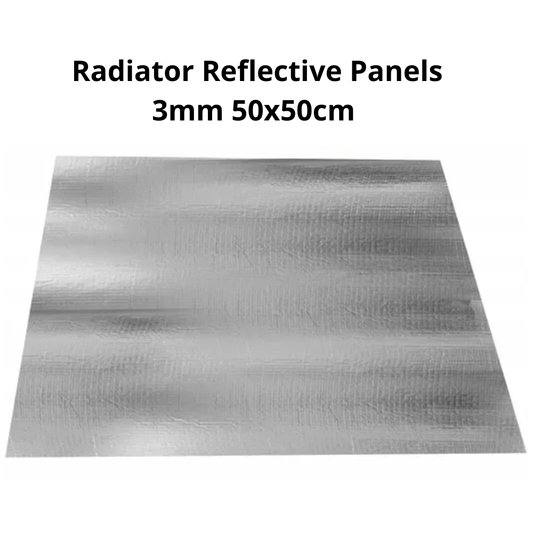

Product Specification - Radiator Reflective Panels XPS with Aluminium Foil

Each panel in the CorkSystem range is manufactured to a consistent specification that balances insulating performance with ease of installation. The panels measure 50 x 50 cm with a 3mm thickness, and each pack of 8 panels provides a total coverage of 2 m² - sufficient for one large radiator or two smaller ones, depending on the dimensions of your radiators and how much of the wall area behind them you want to cover.

The 3mm thickness is deliberate. It is thin enough to fit comfortably in the space between a wall-mounted radiator and the wall surface without requiring the radiator brackets to be repositioned or the radiator to be removed entirely in most standard installations. The high-density XPS core provides dimensional stability - the panels sit flat against the wall, don't sag or compress over time, and maintain consistent contact with the surface behind the radiator throughout their service life. The aluminium foil facing is bonded firmly to the core and will not peel, lift, or delaminate under normal radiator operating temperatures.

Simple Installation - No Plumber, No Tools, No Disruption

Installing radiator reflective panels is a genuinely simple DIY task that most homeowners can complete in under an hour per radiator, without any specialist knowledge or tools. In most cases, the panels can be slid behind the radiator without removing it from the wall - the 3mm thickness is designed to fit within the standard clearance gap between a wall-mounted radiator and the plaster surface.

Cut the panels to the required dimensions using a sharp utility knife and straightedge - XPS cuts cleanly and accurately with minimal effort. Fix the panels to the wall surface using a suitable adhesive or double-sided tape, with the aluminium foil face pointing towards the radiator. Ensure the panels cover as much of the wall area directly behind the radiator as possible for maximum reflective benefit. No plumbing work is required, and the radiator does not need to be drained or disconnected.

For a permanent, reliable fix to the wall surface, our dedicated polystyrene adhesive for EPS/XPS boards is fully compatible with these panels and provides a strong, long-lasting bond to plaster, plasterboard, and painted surfaces.

Where to Use Radiator Reflective Panels

Radiator reflective panels deliver the greatest benefit in rooms where heat loss through external walls is highest. The most effective applications include:

• Radiators mounted on uninsulated solid brick or stone external walls in older properties
• Radiators on cavity walls where cavity insulation is absent or degraded
• Radiators in conservatories, extensions, and outbuildings with limited wall insulation
• Ground floor rooms with radiators on north-facing external walls
• Rental properties and flats where structural insulation improvements are not possible or permitted
• Any room where the radiator runs for extended periods without the room reaching the desired temperature

In newer, well-insulated properties the marginal benefit is smaller, but the panels still reduce surface heat loss and contribute to maintaining room temperature more efficiently. For older homes - particularly Victorian and Edwardian properties with solid external walls - the improvement in effective radiator output can be genuinely noticeable in terms of both room comfort and energy consumption.

Cost, Savings, and Payback

At £8.99 for a pack covering 2 m², radiator reflective panels represent one of the lowest-cost energy efficiency improvements available for a standard UK home. The payback period - the point at which energy savings offset the purchase cost - is typically measured in weeks or months rather than years, particularly in homes with high heating costs and poorly insulated external walls.

Independent research consistently demonstrates that reflective radiator panels can improve the effective heat output directed into a room by a meaningful margin, reducing the time the boiler needs to run to achieve the same thermostat setting. Over a full heating season, the cumulative effect on energy bills is modest but real - and unlike many energy efficiency measures, radiator reflective panels require no ongoing maintenance, no subscription, and no professional involvement after installation. They simply work, quietly and continuously, every time the heating is on.

FAQ - Radiator Reflective Panels

Q: What are radiator reflective panels made from?
A: Each panel consists of a high-density XPS (extruded polystyrene) core with an aluminium foil facing bonded to one side. The XPS core provides thermal insulation, while the aluminium foil reflects radiant heat from the radiator back into the room. The panels measure 50 x 50 cm with a 3mm thickness, and each pack of 8 covers 2 m².

Q: Do I need to remove my radiator to install these panels?
A: In most standard installations, no. The 3mm thickness of each panel is designed to fit within the standard clearance gap between a wall-mounted radiator and the wall surface. The panels can typically be slid into position behind the radiator without draining or disconnecting it. For radiators mounted very close to the wall, a small amount of bracket adjustment may be required.

Q: How do I fix the panels to the wall?
A: The panels can be fixed using double-sided tape for a removable installation, or with a suitable adhesive for a permanent fix. We recommend our dedicated polystyrene adhesive for EPS/XPS boards for the most reliable long-term bond. Always install the panels with the aluminium foil face pointing towards the radiator, not towards the wall.

Q: How many packs do I need for my radiators?
A: Each pack of 8 panels covers 2 m². Measure the height and width of the wall area directly behind each radiator, calculate the area in square metres, and divide by 2 to get the number of packs required. For most standard UK single or double panel radiators, one pack per radiator is sufficient.

Q: Will these panels make a noticeable difference to my heating bills?
A: The impact varies depending on how well insulated your walls already are. In older properties with solid or uninsulated external walls, the improvement in effective radiator heat output can be significant and the reduction in boiler running time noticeable over a heating season. In well-insulated modern homes, the benefit is more marginal but still present. Either way, at £8.99 per pack the cost of installation is low enough that payback is typically achieved within a single heating season.

Q: Can the panels be cut to fit non-standard radiator sizes?
A: Yes. The XPS material cuts cleanly and easily with a sharp utility knife and metal straightedge. Panels can be trimmed to any dimensions required to fit behind radiators of non-standard sizes, or to work around brackets, pipes, and wall fittings. The aluminium foil facing cuts cleanly alongside the XPS core without peeling or lifting.

Q: Are radiator reflective panels safe to use with all types of radiator?
A: Yes. The panels are suitable for use with all standard hot water central heating radiators operating at normal domestic temperatures. They are not recommended for use directly adjacent to electric storage heaters or high-temperature radiant heating elements where surface temperatures significantly exceed those of a standard central heating radiator.
